Correcting an Unsupported Chimney Breast with a 7.5m Steel Beam Installation
When buying a property, it's not uncommon for hidden structural issues to come to light long after completion. One of the most common problems we encounter is a chimney breast that has been removed without the correct structural support being installed.
This recent project involved exactly that scenario.
Our client had inherited a structural issue following the purchase of their property. Previous alterations had left the remaining chimney stack inadequately supported, creating a situation that required immediate attention to ensure the long-term safety of the building.
The Problem: An Unsupported Chimney Breast
Many homeowners are unaware that removing part of a chimney breast is considered a structural alteration. The remaining masonry above must be adequately supported, usually through structural steelwork designed by a structural engineer and approved through Building Regulations.
Unfortunately, older alterations are sometimes completed without the correct calculations, inspections, or support systems in place.
In this case, the only suitable solution was the installation of a substantial 7.5-metre structural steel beam to safely support the remaining chimney structure and transfer the loads correctly through the property.
Designing a Practical Solution
Installing a steel beam of this size is a significant undertaking under normal circumstances.
The beam weighed more than 550kg, making it impossible to manoeuvre into position as a single section through the existing property.
Rather than introducing costly access requirements, scaffolding, roof removal, or crane lifts, the engineering solution called for the beam to be manufactured in four separate sections which could then be carefully installed and spliced together within the loft space.
This approach provided a major cost saving for the homeowner while still delivering the structural performance required by the engineer's design.
The Installation Process
The project required meticulous planning from start to finish.

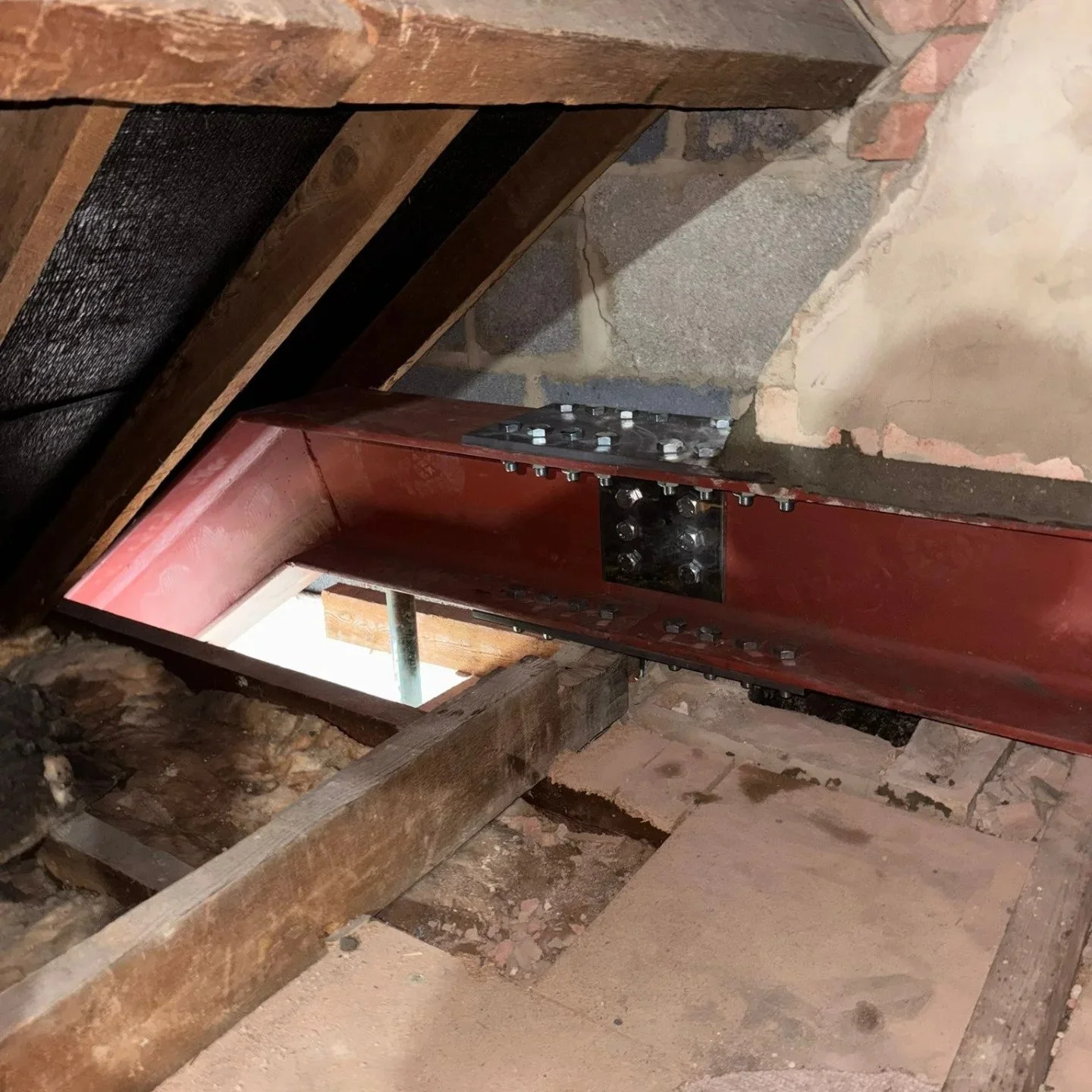

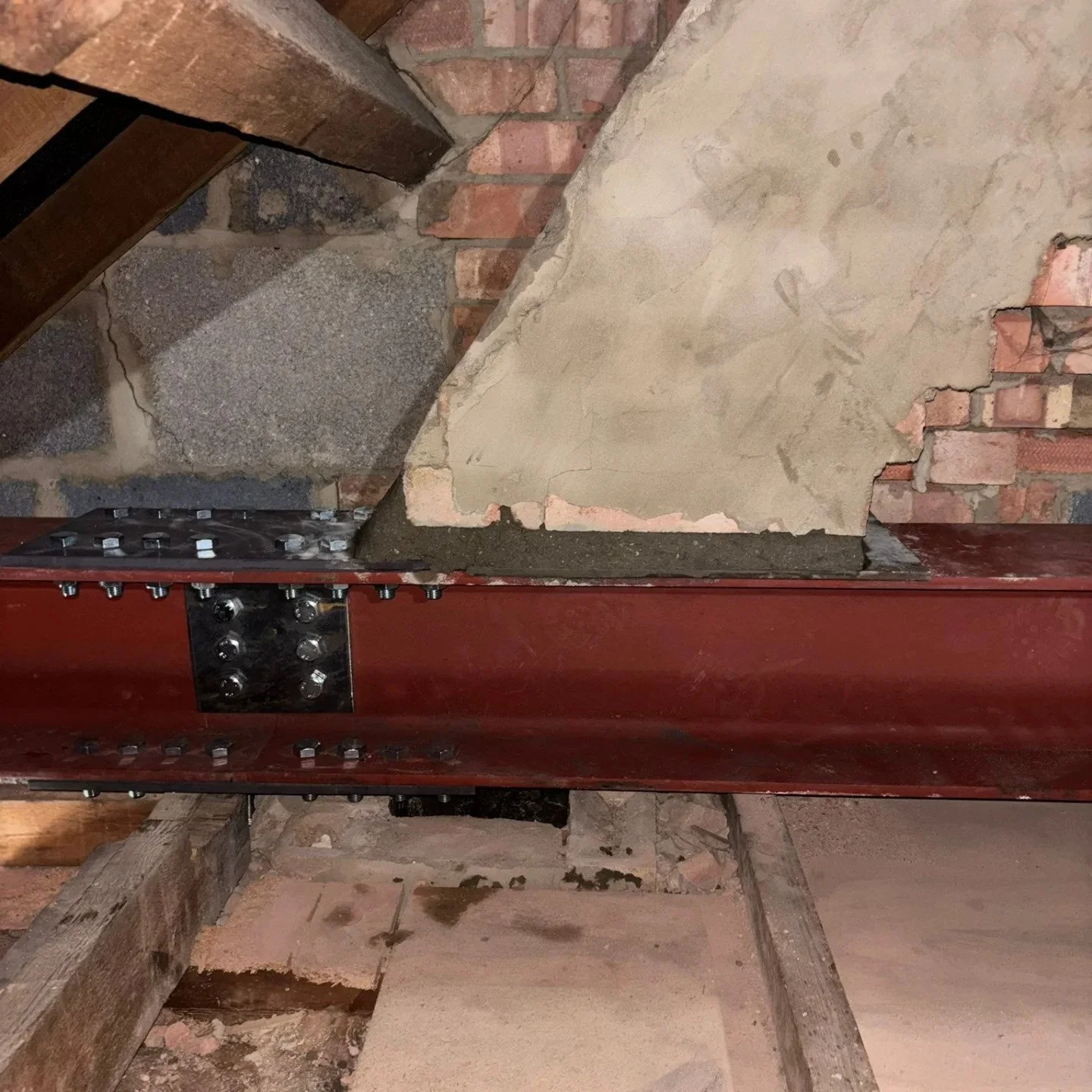

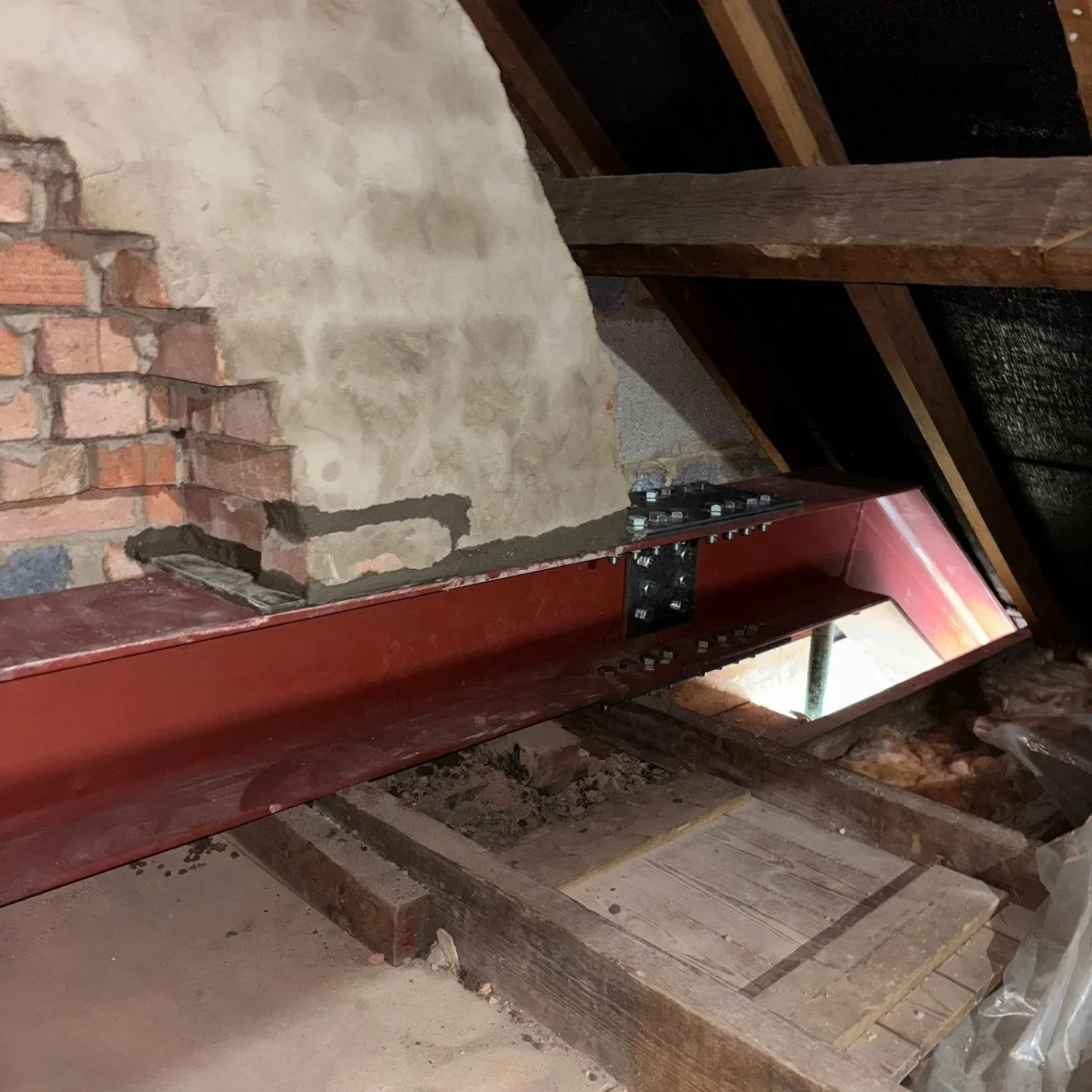

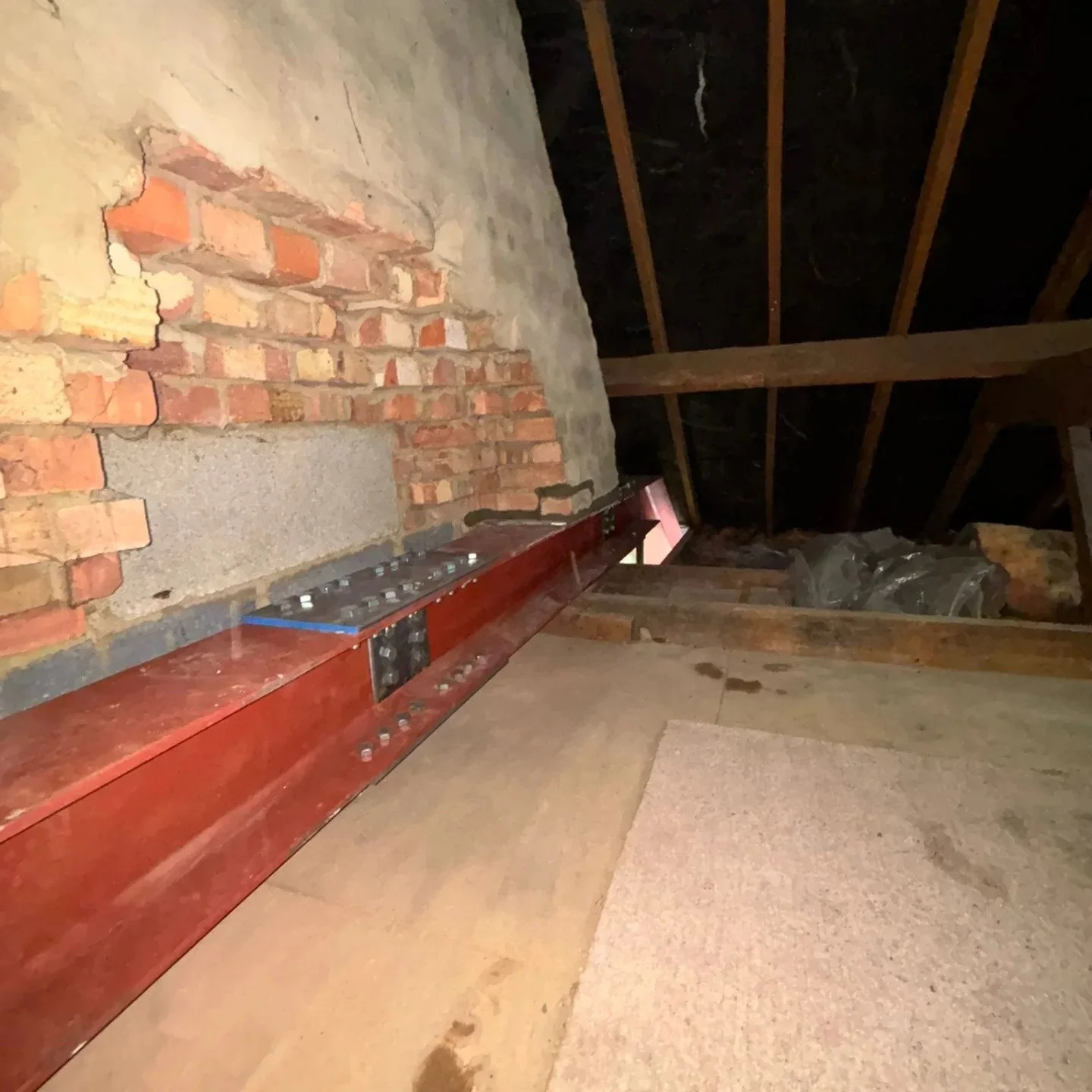

Each section of steel was carefully brought into the property and positioned within the roof space. Once in place, the beam sections were connected using engineered splice plates and a substantial number of high-strength bolts.
With almost 120 bolt holes needing to align perfectly, accuracy was critical throughout the installation process.

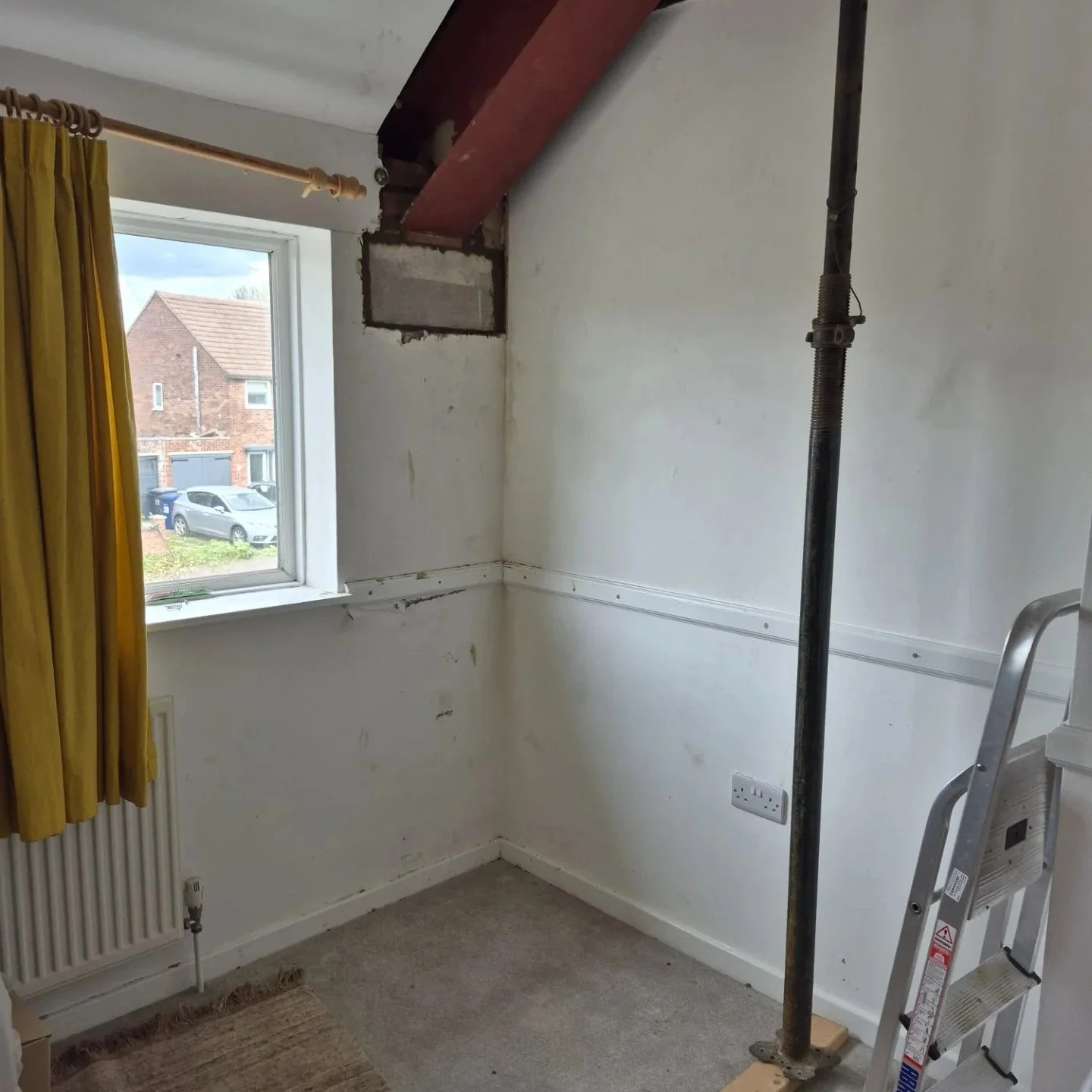

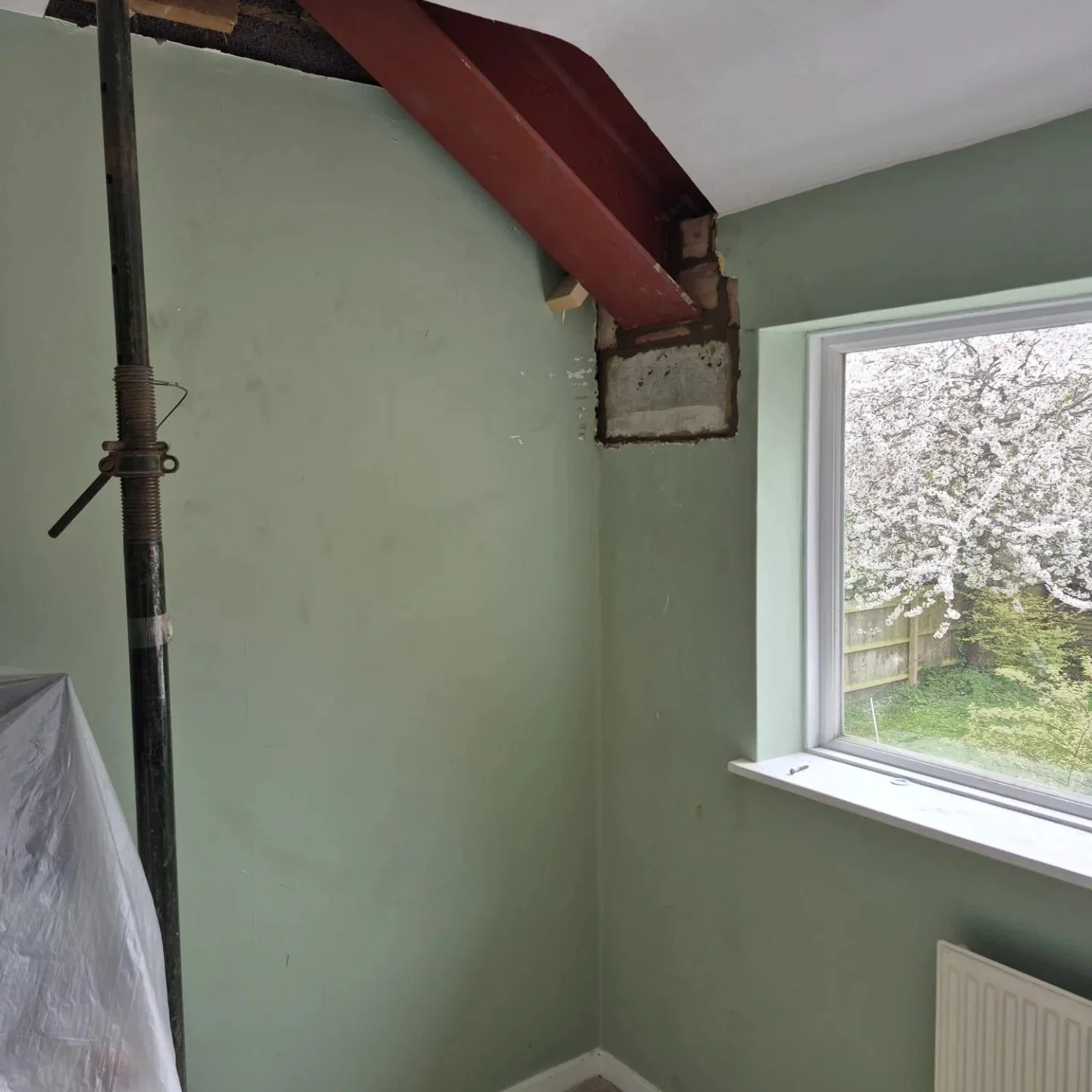

The completed steel assembly now acts as a single structural member, providing permanent support to the remaining chimney stack and ensuring loads are transferred safely into the supporting structure below.
Avoiding Scaffolding, Cranes and Roof Repairs
One of the biggest benefits of the spliced beam design was the ability to complete the work entirely from within the property.
By avoiding external lifting operations, the client benefited from:
No crane hire costs
No scaffolding requirements
No roof removal or roof repair costs
Reduced disruption to the property
Faster installation times
For many homeowners dealing with inherited structural defects, finding the most practical and cost-effective solution is just as important as the structural repair itself.
Building Regulations Compliance Restored
With the steel installation complete, the property now has the structural support it should have had from the outset.
The work has restored compliance with current Building Regulations requirements and provides the homeowner with valuable documentation and certification for future property sales.
Most importantly, the client now has confidence that their home is structurally sound and that the remaining chimney breast is properly supported.
Structural Problems Don't Always Appear Immediately
Issues relating to unsupported chimney breasts can remain hidden for many years before being discovered during renovations, surveys, or property purchases.
Common warning signs include:
Missing documentation for previous chimney removals
Cracking around chimney breasts
Sagging floors or ceilings nearby
Concerns raised during a homebuyer survey
Loft steelwork that appears incomplete or inadequate
If you're unsure whether previous structural alterations were completed correctly, it's always worth having them professionally assessed.
The Outcome
This project demonstrates how complex structural problems can often be resolved without extensive external works when the right engineering solution is applied.
By installing a specially designed 7.5m spliced steel beam, we were able to safely support the remaining chimney structure, restore Building Regulations compliance, and save the client significant costs associated with cranes, scaffolding, and roof alterations.
Another structural issue resolved, and another homeowner left with complete peace of mind.
